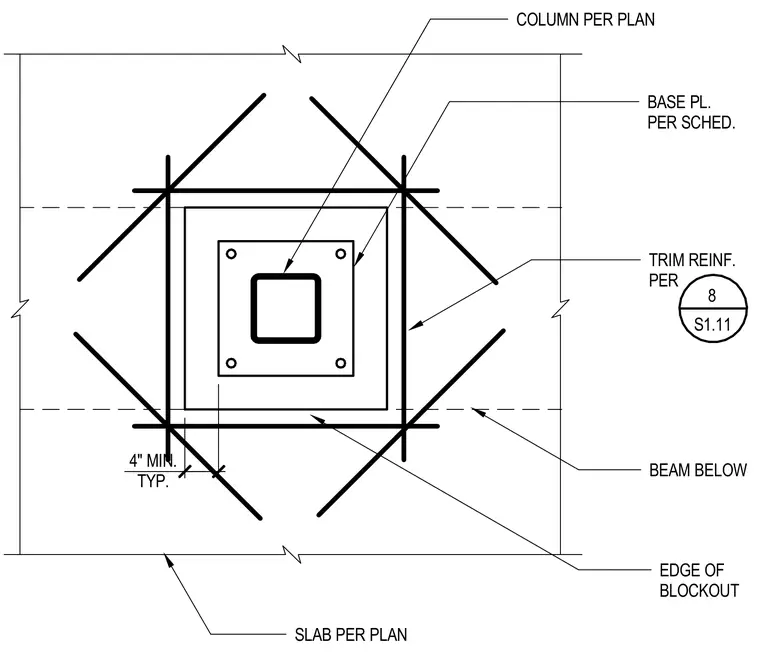

A column is positioned per plan with its base plate sized according to the structural schedule. The base plate rests above a concrete slab blockout with an edge dimensioned four inches minimum typical. Trim reinforcement surrounds the blockout opening within the slab per plan. A structural beam runs below the assembly.
8 S1.11 TRIM REINF. PER COLUMN PER PLAN BASE PL. PER SCHED. BEAM BELOW EDGE OF BLOCKOUT SLAB PER PLAN 4" MIN. TYP.
