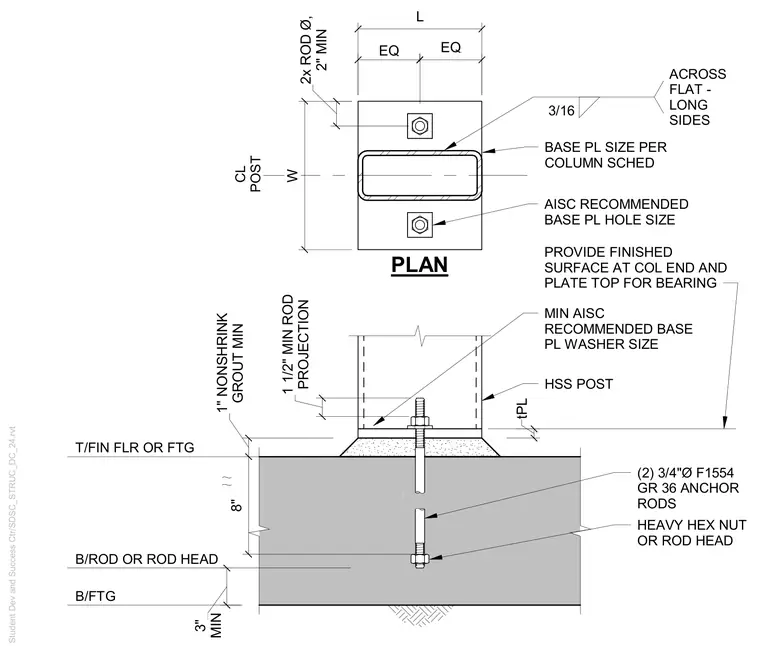

An HSS post bears onto a steel base plate sized per the column schedule, secured with two three-quarter-inch diameter F1554 Grade 36 anchor rods featuring heavy hex nuts or rod heads. A three-sixteenths-inch fillet weld connects the post along the long sides of the base plate, leaving the short sides unwelded. A finished bearing surface is provided at the bottom of the column end and top of the plate. The assembly sits on a minimum one-inch layer of nonshrink grout over a concrete foundation, maintaining specified edge distances and anchor rod projections.
B/FTG T/FIN FLR OR FTG B/ROD OR ROD HEAD 3/16 ACROSS FLAT - LONG SIDES BASE PL SIZE PER COLUMN SCHED CL POST (2) 3/4"Ø F1554 GR 36 ANCHOR RODS HEAVY HEX NUT OR ROD HEAD HSS POST PLAN MIN 3" AISC RECOMMENDED BASE PL HOLE SIZE MIN AISC RECOMMENDED BASE PL WASHER SIZE PROVIDE FINISHED SURFACE AT COL END AND PLATE TOP FOR BEARING L W EQ tPL PROJECTION 1 1/2" MIN ROD 8" GROUT MIN 1" NONSHRINK 2" MIN 2x ROD Ø, EQ
