Structural · S-CZXBW

Elevator Pit Wall and Foundation Detail

Materials

Reinforced Concrete Steel

Elements

Columns Stairs Floors / Slabs Arches Waterproofing / Flashing Reinforcing

Connections

HSS Connection

About this detail

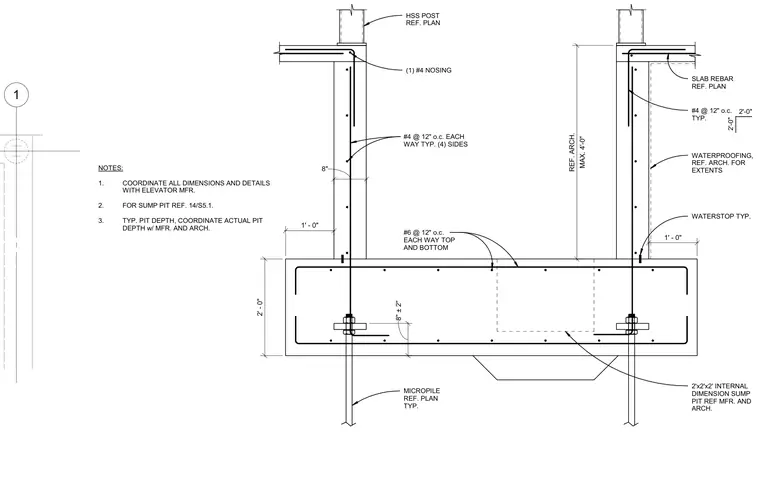

A reinforced concrete elevator pit assembly is supported by micropiles sized and located per plan. The thick concrete base slab is reinforced with number six bars at twelve inches on center each way top and bottom, and features a two-foot by two-foot by two-foot internal dimension sump pit coordinated with the manufacturer and architect. Pit walls are eight inches thick, reinforced with number four bars at twelve inches on center each way on all four sides, and include waterstops and waterproofing per architectural extents. Hollow structural section posts extend from the top of the pit walls, tied into the structure with number four nosing bars. Micropiles anchor into the base slab, and foundation dimensions coordinate with the elevator manufacturer requirements.
