A steel column per plan connects to a beam per plan using a 5-1/2 inch by 9-inch by 1/2-inch cap plate. The cap plate is secured with four SDS 8-inch wood screws typical with specified edge clearances. Truss blocking rests above the framing with a 3/16-inch fillet weld shown at the connection. A rim beam and two A35 framing anchors on each side of the beam are positioned beyond the main framing assembly.

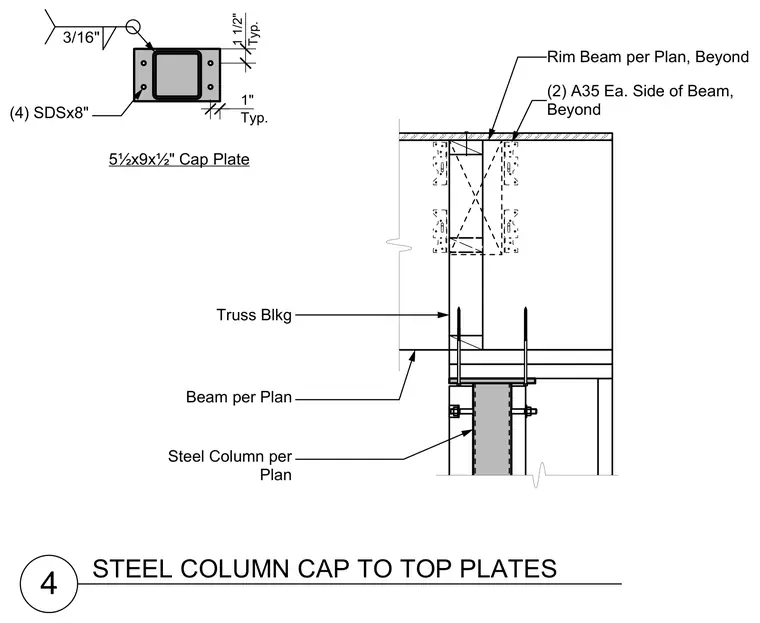

4 STEEL COLUMN CAP TO TOP PLATES Steel Column per Plan Beam per Plan (4) SDSx8" 5½x9x½" Cap Plate 1" Typ. 3/16" Truss Blkg 1 1/2" Typ. Rim Beam per Plan, Beyond (2) A35 Ea. Side of Beam, Beyond
