Typical Angle End Connections

Materials

Steel

Elements

Beams Connections / Plates

Connections

Welded Connection

About this detail

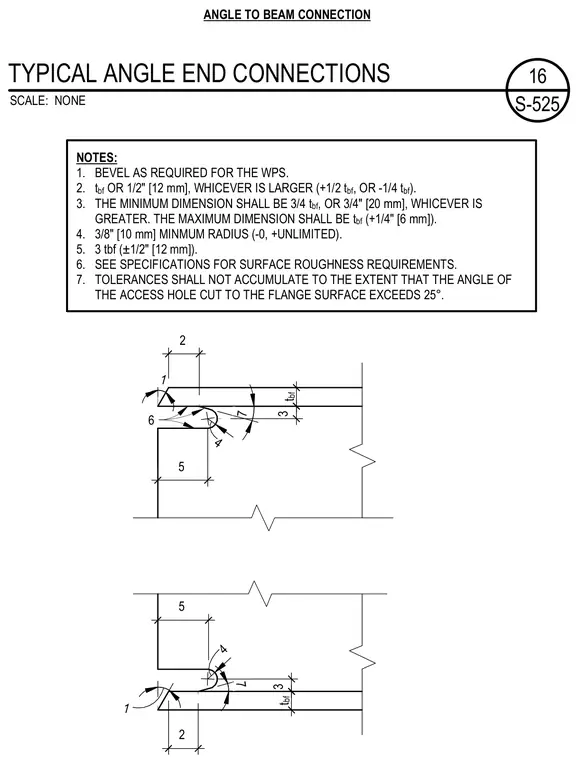

Standard dimensional requirements and access hole geometry for structural steel angle end connections. Fabrication notes specify weld bevel requirements, minimum and maximum dimensions relative to flange thickness, radius limits, and surface roughness tolerances.
