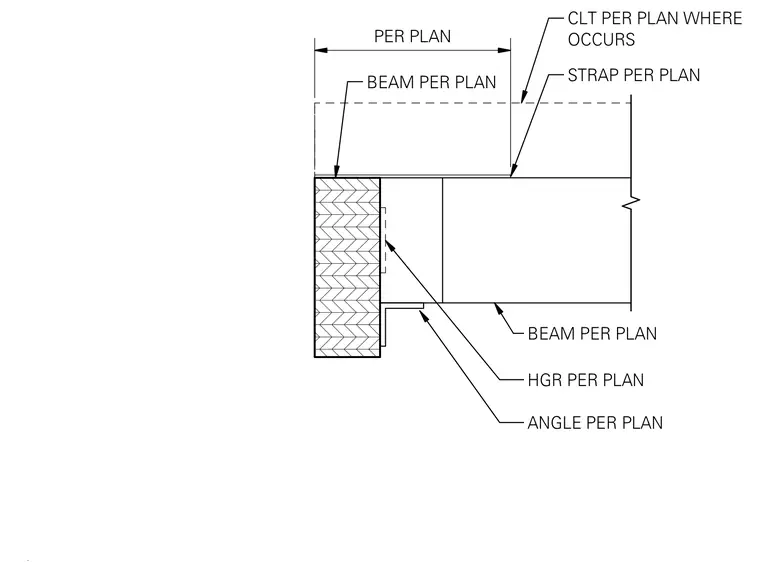

A deep beam connects to a shallow beam utilizing a hanger and a supporting angle sized per plan. Cross-laminated timber is positioned where occurs above the assembly. A strap per plan ties the members together across the connection interface.
BEAM PER PLAN CLT PER PLAN WHERE OCCURS HGR PER PLAN STRAP PER PLAN BEAM PER PLAN ANGLE PER PLAN PER PLAN
