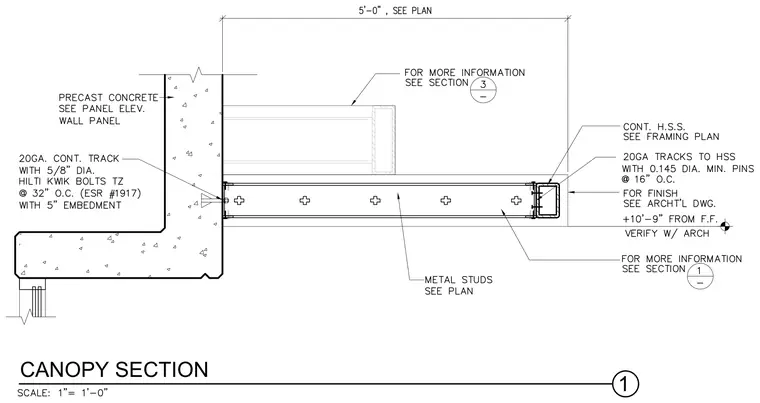

A five-foot canopy framing assembly is anchored to a precast concrete wall panel. Metal studs span from a twenty-gauge continuous track secured to the precast concrete with five-eighth-inch diameter Hilti Kwik Bolts TZ at thirty-two inches on center with five-inch embedment. The outer edge terminates at a continuous hollow structural section framing member, tied back with twenty-gauge tracks fastened using zero-point-one-four-five-inch diameter minimum pins at sixteen inches on center. The overall canopy height is set at ten feet nine inches from finished floor, with exact finishes coordinated per architectural drawings.
