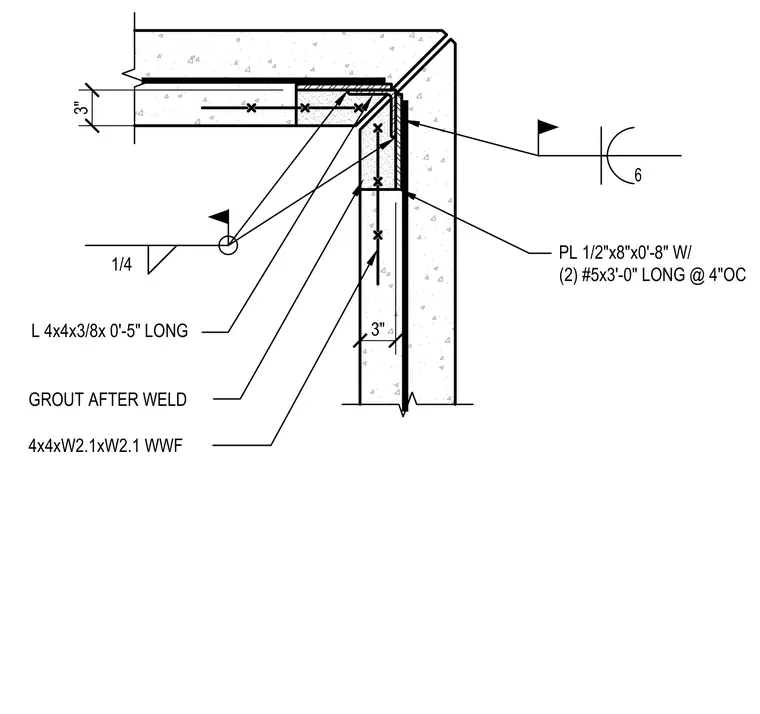

Precast concrete panels meet at a corner angle connected by an embedded one-half-inch by eight-inch by eight-inch steel plate with two three-foot-long number five reinforcing bars spaced at four inches on center. A four-by-four-by-three-eighths-inch steel angle, zero feet five inches long, ties the panel corner together with a quarter-inch fillet weld. The joint cavity is grouted after welding is complete and reinforced with four-by-four W2.1 by W2.1 welded wire fabric.
3" 3" 1/4 L 4x4x3/8x 0'-5" LONG 4x4xW2.1xW2.1 WWF GROUT AFTER WELD 6 PL 1/2"x8"x0'-8" W/ (2) #5x3'-0" LONG @ 4"OC
