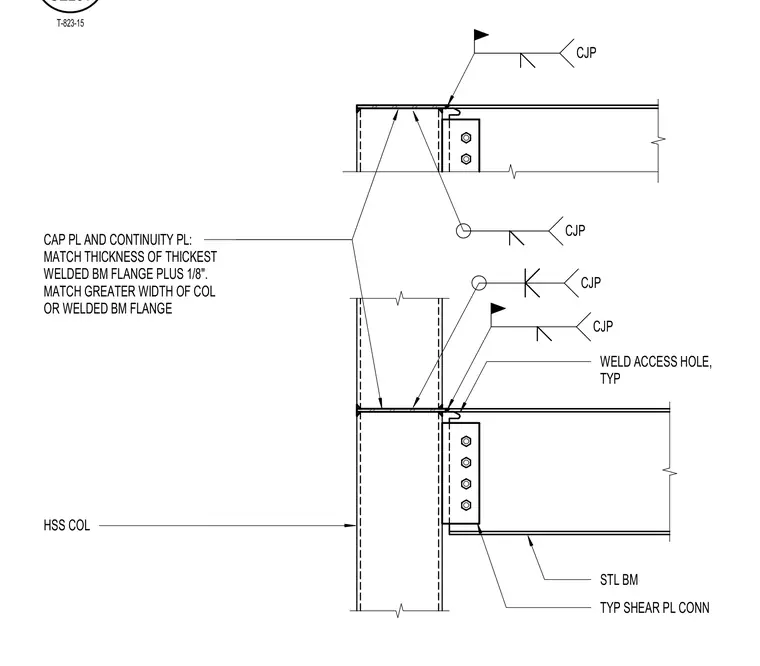

A steel beam connects to a hollow structural section column using a typical shear plate connection at the web and complete joint penetration welds at the top and bottom flanges. Weld access holes are provided typically at the beam web-to-flange intersections. Cap plates and continuity plates match the thickness of the thickest welded beam flange plus one-eighth inch and match the greater width of the column or welded beam flange.
HSS COL STL BM TYP SHEAR PL CONN WELD ACCESS HOLE, TYP CAP PL AND CONTINUITY PL: MATCH THICKNESS OF THICKEST WELDED BM FLANGE PLUS 1/8". MATCH GREATER WIDTH OF COL OR WELDED BM FLANGE CJP CJP CJP CJP SE231 T-823-15
