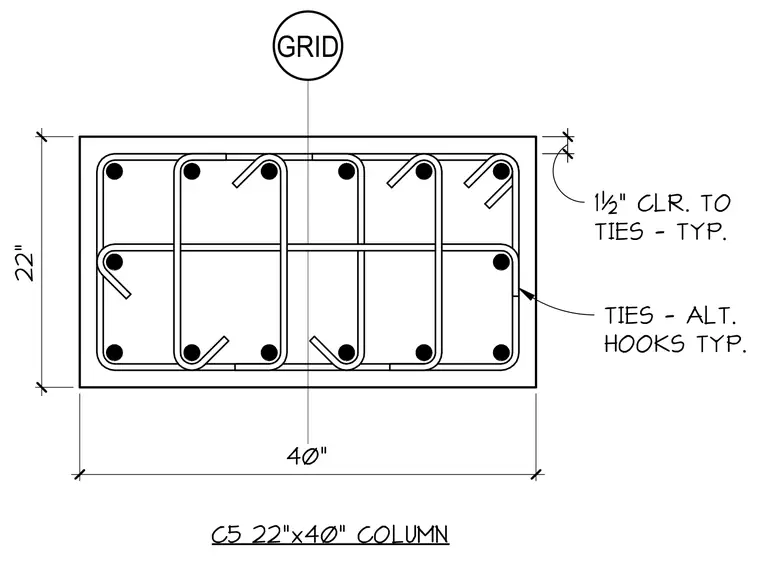

A rectangular reinforced concrete column measuring 22 inches by 40 inches in cross-section is centered on a grid line. The assembly incorporates longitudinal reinforcing bars distributed around the perimeter with internal steel ties featuring alternating hooks. A standard clearance of 1 1/2 inches is maintained from the face of the concrete to the ties typically throughout the member.
40" C5 22"x40" COLUMN 1½" CLR. TO TIES - TYP. TIES - ALT. HOOKS TYP. GRID 22" 1 1/2"
