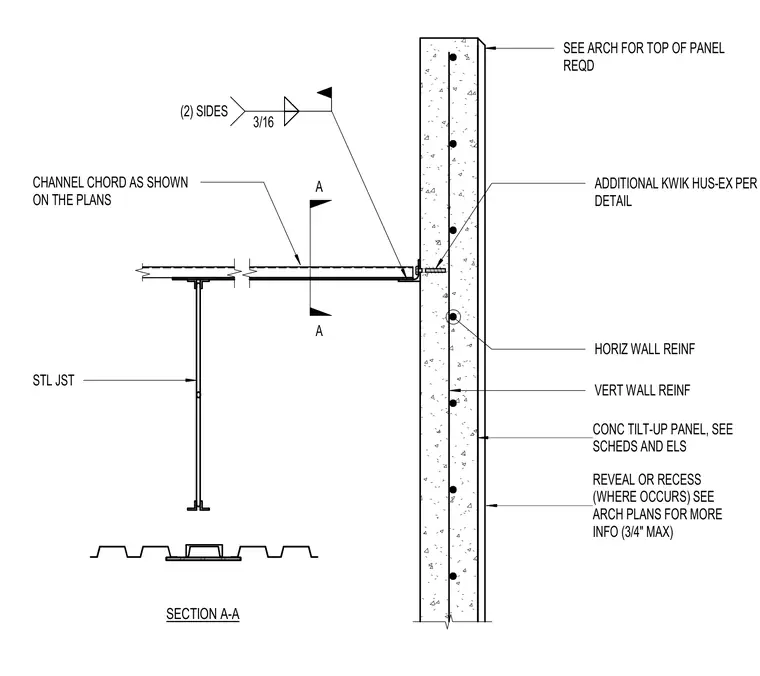

A structural steel channel chord connects to a concrete tilt-up wall panel utilizing concrete anchors and welded connections. Additional Kwik Hus-Ex anchors secure the channel chord to the concrete wall panel. A steel joist frames into the channel chord assembly, joined by a 3/16-inch fillet weld on two sides. The concrete tilt-up panel contains horizontal and vertical wall reinforcement, with provisions for architectural reveals or recesses as specified on the architectural plans.
A A SEE ARCH FOR TOP OF PANEL REQD CHANNEL CHORD AS SHOWN ON THE PLANS HORIZ WALL REINF VERT WALL REINF REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) CONC TILT-UP PANEL, SEE SCHEDS AND ELS SECTION A-A STL JST ADDITIONAL KWIK HUS-EX PER DETAIL 3/16 (2) SIDES
