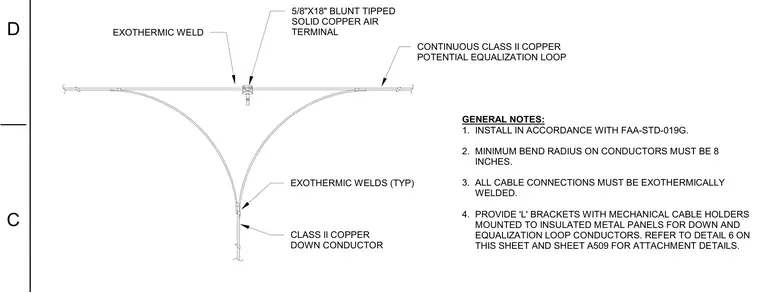

A five-eighth inch by eighteen inch blunt tipped solid copper air terminal connects to a continuous class two copper potential equalization loop via an exothermic weld. A class two copper down conductor ties into the loop using typical exothermic welds and is mounted to insulated metal panels using 'L' brackets with mechanical cable holders. All installations must follow FAA-STD-019G with a minimum bend radius on conductors of eight inches, and all cable connections must be exothermically welded.
CONTINUOUS CLASS II COPPER POTENTIAL EQUALIZATION LOOP EXOTHERMIC WELDS (TYP) 5/8"X18" BLUNT TIPPED SOLID COPPER AIR TERMINAL CLASS II COPPER DOWN CONDUCTOR GENERAL NOTES: 1. INSTALL IN ACCORDANCE WITH FAA-STD-019G. 2. MINIMUM BEND RADIUS ON CONDUCTORS MUST BE 8 INCHES. 3. ALL CABLE CONNECTIONS MUST BE EXOTHERMICALLY WELDED. 4. PROVIDE 'L' BRACKETS WITH MECHANICAL CABLE HOLDERS MOUNTED TO INSULATED METAL PANELS FOR DOWN AND EQUALIZATION LOOP CONDUCTORS. REFER TO DETAIL 6 ON THIS SHEET AND SHEET A509 FOR ATTACHMENT DETAILS. EXOTHERMIC WELD D C
