Structural · S-CZ254

Concrete Wall Foundation and Slab on Grade Details

Materials

Concrete

Elements

Walls Floors / Slabs Arches Waterproofing / Flashing Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

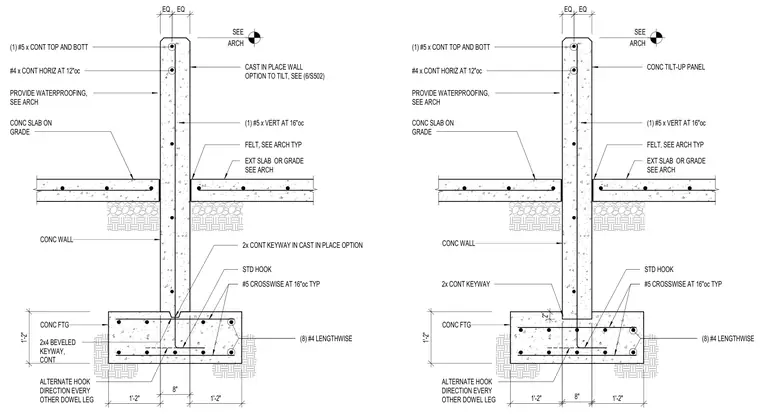

These foundation details illustrate concrete foundation walls supported by continuous concrete footings with integrated slab on grade transitions. The footing is reinforced with eight number four lengthwise bars and number five crosswise bars spaced at sixteen inches on center with alternating hook directions on every other dowel leg. The wall includes number five vertical bars at sixteen inches on center, number four horizontal bars at twelve inches on center, and one number five bar top and bottom, with continuous keyways and waterproofing provided as specified by architectural drawings.
