Typical Standard Bolted Beam to Column Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Moment Connection Welded Connection Bolted Connection

About this detail

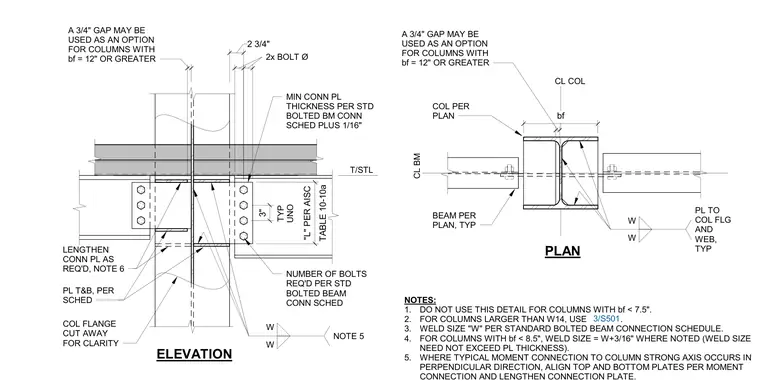

A standard bolted beam-to-column connection features top and bottom plates welded to the column flange and web. The supported steel beam connects via a bolted web connection requiring the number of bolts specified per the standard bolted beam connection schedule. Connection plates are sized to a minimum thickness per the standard schedule plus one-sixteenth of an inch, with plate lengths conforming to AISC Table 10-10a unless noted otherwise. Fillet welds join the connection plates to the column flange and web, with weld sizes dictated by the standard schedule. An optional three-quarter-inch gap may be used for columns with a flange width greater than or equal to twelve inches.
