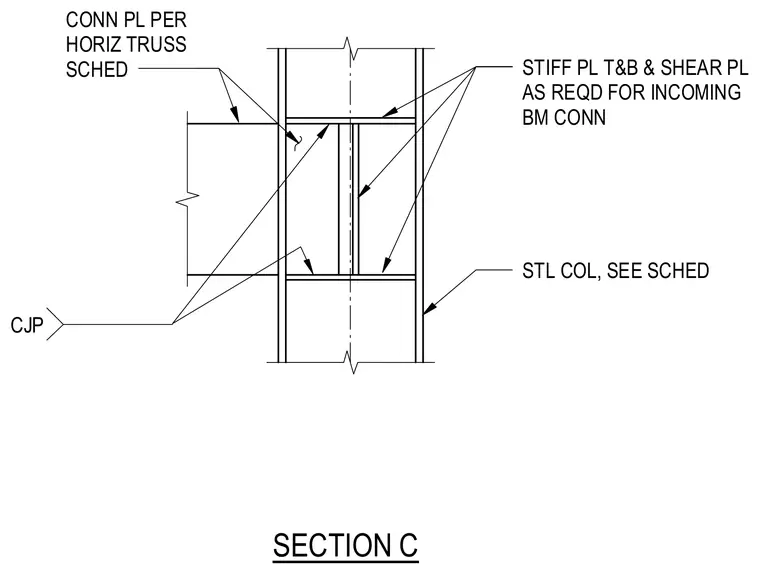

A steel column receives top and bottom stiffener plates along with shear plates as required for incoming beam connections. Connection plates are sized per the horizontal truss schedule. Complete joint penetration welds are specified for the plate connections.
STIFF PL T&B & SHEAR PL AS REQD FOR INCOMING BM CONN STL COL, SEE SCHED CONN PL PER HORIZ TRUSS SCHED CJP SECTION C
