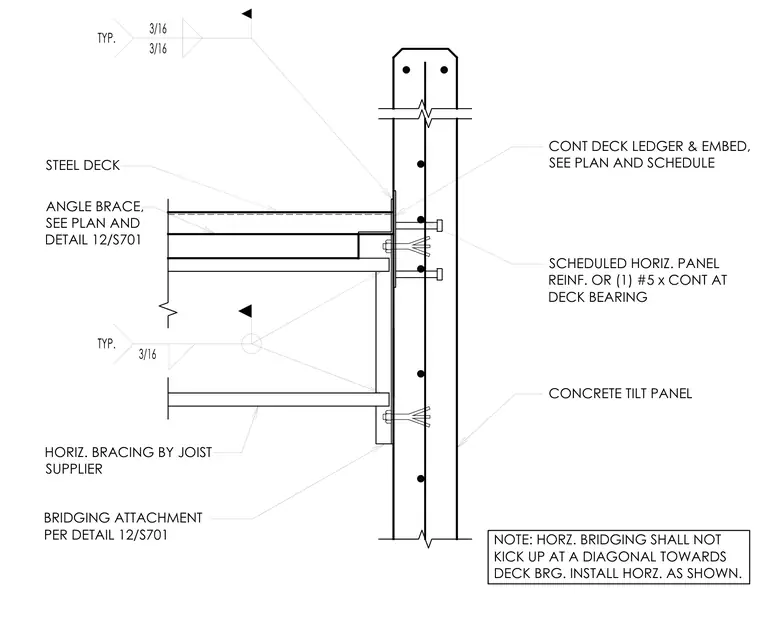

A steel deck bears against a concrete tilt-up wall panel utilizing a continuous deck ledger and embed plate anchored into the concrete. Scheduled horizontal panel reinforcement or one continuous number five rebar is positioned at the deck bearing. An angle brace connects to the panel and steel framing as specified per plan and detail. Horizontal bracing is supplied by the joist manufacturer and installed horizontally without kicking up diagonally toward the deck bearing.
3/16 BRIDGING ATTACHMENT PER DETAIL 12/S701 HORIZ. BRACING BY JOIST SUPPLIER NOTE: HORZ. BRIDGING SHALL NOT KICK UP AT A DIAGONAL TOWARDS DECK BRG. INSTALL HORZ. AS SHOWN. 3/16 3/16 TYP. STEEL DECK TYP. SCHEDULED HORIZ. PANEL REINF. OR (1) #5 x CONT AT DECK BEARING CONCRETE TILT PANEL ANGLE BRACE, SEE PLAN AND DETAIL 12/S701 CONT DECK LEDGER & EMBED, SEE PLAN AND SCHEDULE
