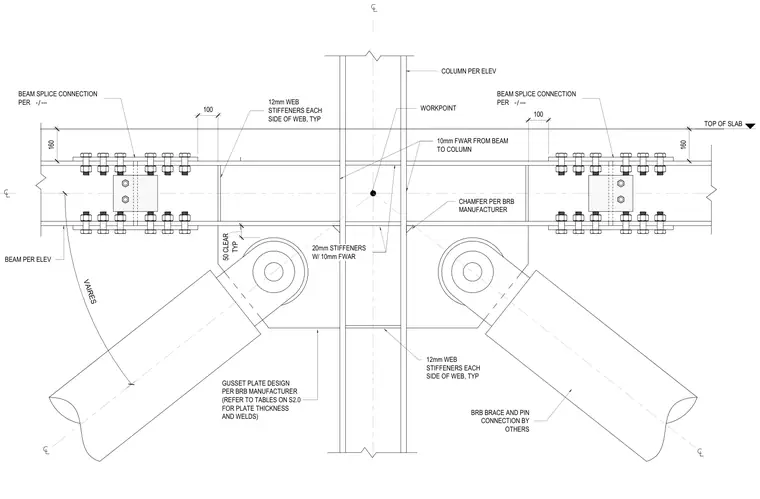

An inverted V-braced frame concentric junction connects buckling-restrained braces to a steel column and continuous beams. The connection features gusset plates with a chamfer per the manufacturer, twelve-millimeter web stiffeners on each side of the web typically, and twenty-millimeter stiffeners with ten-millimeter fillet welds around the workpoint. Beams connect to the column with ten-millimeter fillet welds and include adjacent bolted beam splice connections. Buckling-restrained brace and pin connections are provided by others below the fifty-millimeter clearance zone. Gusset plate thickness and welds are designed per the buckling-restrained brace manufacturer with reference to tables on sheet S2.0.
TOP OF SLAB 160 WORKPOINT VAIRES BRB BRACE AND PIN CONNECTION BY OTHERS CHAMFER PER BRB MANUFACTURER GUSSET PLATE DESIGN PER BRB MANUFACTURER (REFER TO TABLES ON FOR PLATE THICKNESS AND WELDS) 12mm WEB STIFFENERS EACH SIDE OF WEB, TYP 12mm WEB STIFFENERS EACH SIDE OF WEB, TYP 20mm STIFFENERS W/ 10mm FWAR COLUMN PER ELEV BEAM PER ELEV TYP 50 CLEAR 160 100 100 BEAM SPLICE CONNECTION PER / - --- BEAM SPLICE CONNECTION PER / - --- 10mm FWAR FROM BEAM TO COLUMN S2.0
