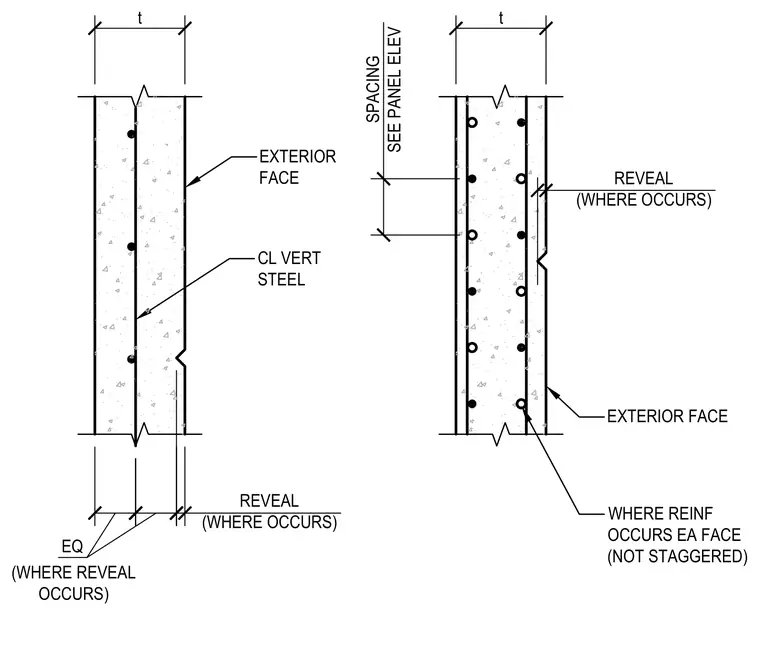

Vertical reinforcing steel is centered within the reinforced concrete wall thickness with equal spacing across the panel width. Reveals are located on the exterior face where indicated, with vertical reinforcement occurring on each face without staggering. Spacing for the reinforcing bars is determined per the panel elevation drawings.
t REVEAL (WHERE OCCURS) EXTERIOR FACE CL VERT STEEL t EQ EXTERIOR FACE REVEAL (WHERE OCCURS) SPACING SEE PANEL ELEV WHERE REINF OCCURS EA FACE (NOT STAGGERED) (WHERE REVEAL OCCURS)
