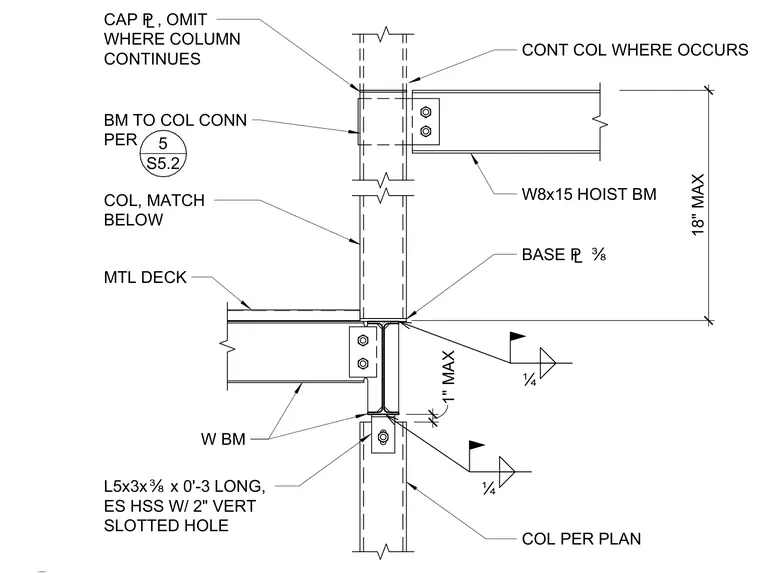

An HSS column supports a W8x15 hoist beam with a beam-to-column connection and a cap plate omitted where the column continues. A base plate of 3/8-inch thickness ties into the metal deck assembly. A W-shape beam connects below, featuring an L5x3x3/8 angle three inches long with an end plate on the HSS containing a two-inch vertical slotted hole for movement accommodation. Fillet welds of one-quarter inch size secure the structural steel members as indicated. The column matches the sizing below and continues as required per plan.
W8x15 HOIST BM L5x3xÍ x 0'-3 LONG, ES HSS W/ 2" VERT SLOTTED HOLE W BM MTL DECK Ë 1" MAX BASE £ Í COL, MATCH BELOW 18" MAX COL PER PLAN Ë CAP £, OMIT WHERE COLUMN CONTINUES BM TO COL CONN PER 5 S5.2 CONT COL WHERE OCCURS
