Structural · S-CX7RP

W-Shape Beam Centered on Column Flange and Web Connections

Elements

Connections

About this detail

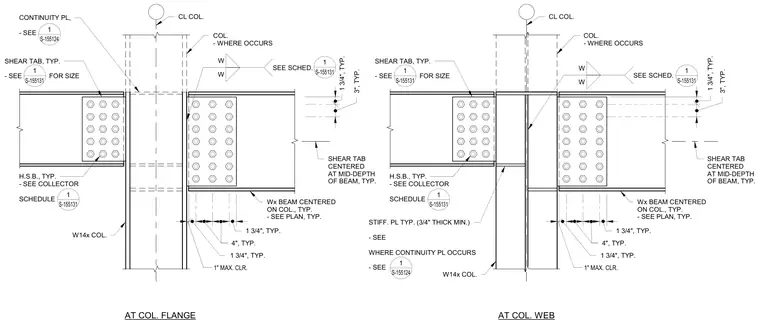

W-shape framing beams centered on a W14x column flange and web connect via a shear plate welded to the column and bolted to the beam web with high-strength bolts. Continuity plates and stiffener plates are provided at column locations where required by stress conditions, with a minimum thickness of three-quarters of an inch. A maximum clearance of one inch is maintained between the beam end and the column face. Bolt spacing includes standard dimensions of three inches vertically and four inches horizontally with edge distances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
