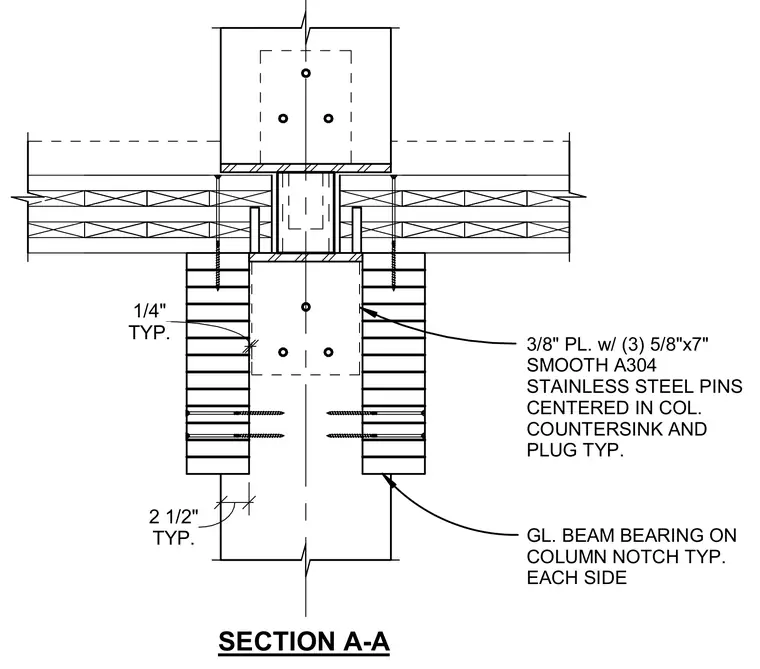

A beam bears on a column notch with three five-eighths inch by seven-inch smooth A304 stainless steel pins centered in the column. A three-eighths-inch plate is used with countersunk and plugged fasteners typical on each side. Glued-laminated timber beams bear directly on the column notch, maintaining a typical quarter-inch clearance.
SECTION A-A TYP. 2 1/2" 3/8" PL. w/ (3) 5/8"x7" SMOOTH A304 STAINLESS STEEL PINS CENTERED IN COL. COUNTERSINK AND PLUG TYP. TYP. 1/4" GL. BEAM BEARING ON COLUMN NOTCH TYP. EACH SIDE
