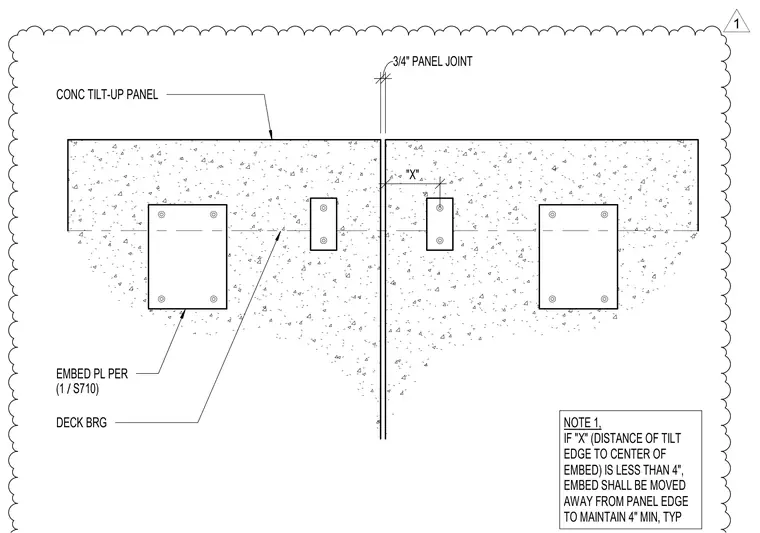

Adjacent concrete tilt-up panels connect across a three-quarter-inch panel joint with deck bearing embed plates per structural sheet S710. Distance "X" measures the clearance from the tilt edge to the center of the embed plate. When distance "X" falls below four inches, the embed plate relocates away from the panel edge to maintain a typical four-inch minimum spacing.
3/4" PANEL JOINT CONC TILT-UP PANEL DECK BRG EMBED PL PER NOTE 1, IF "X" (DISTANCE OF TILT EDGE TO CENTER OF EMBED) IS LESS THAN 4", EMBED SHALL BE MOVED AWAY FROM PANEL EDGE TO MAINTAIN 4" MIN, TYP / (1 S710) "X" 1
