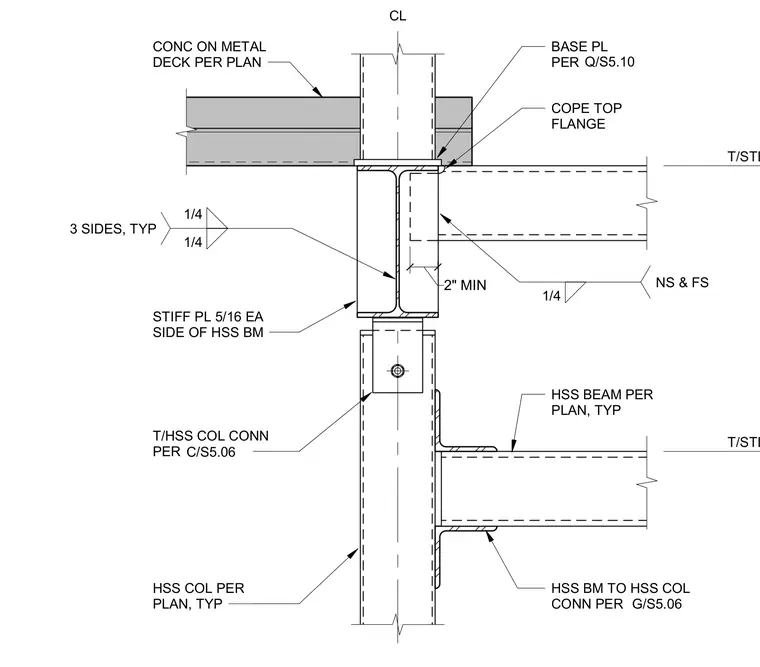

A hollow structural section beam frames into a hollow structural section column with stiffener plates welded to each side of the beam web. A base plate sits atop the column and supports the concrete on metal deck assembly above. The beam top flange is coped to clear the base plate, leaving a two-inch minimum clearance. A quarter-inch fillet weld is specified on both the near side and far side of the beam connection, while the stiffener plates receive quarter-inch welds along three sides.
STIFF PL 5/16 EA SIDE OF HSS BM HSS BEAM PER PLAN, TYP HSS COL PER PLAN, TYP CL HSS BM TO HSS COL CONN PER T/HSS COL CONN PER CONC ON METAL DECK PER PLAN C/S5.06 G/S5.06 2" MIN 1/4 NS & FS COPE TOP FLANGE 1/4 1/4 3 SIDES, TYP BASE PL PER Q/S5.10
