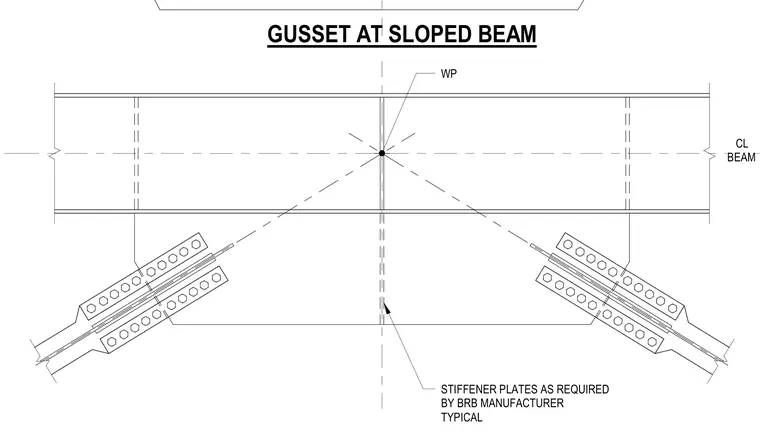

A gusset plate connection joins a sloped structural steel beam with buckling-restrained braces and work point centerlines. Stiffener plates are included as required by the buckling-restrained brace manufacturer.
WP CL BEAM STIFFENER PLATES AS REQUIRED BY BRB MANUFACTURER TYPICAL GUSSET AT SLOPED BEAM
