A galvanized C10 frame secures the stair landing to a thickened concrete slab and tilt-up concrete panel using epoxy anchors. A C12x20.7 galvanized steel stringer supports the landing assembly with typical galvanized steel bar grate stair treads. A galvanized 1-1/2 inch by 1-1/2 inch by 1/8 inch angle spans the width of the landing on each side and welds to the channel stringer. A 1-1/2 inch diameter galvanized steel pipe guardrail extends upward from the landing slab edge.

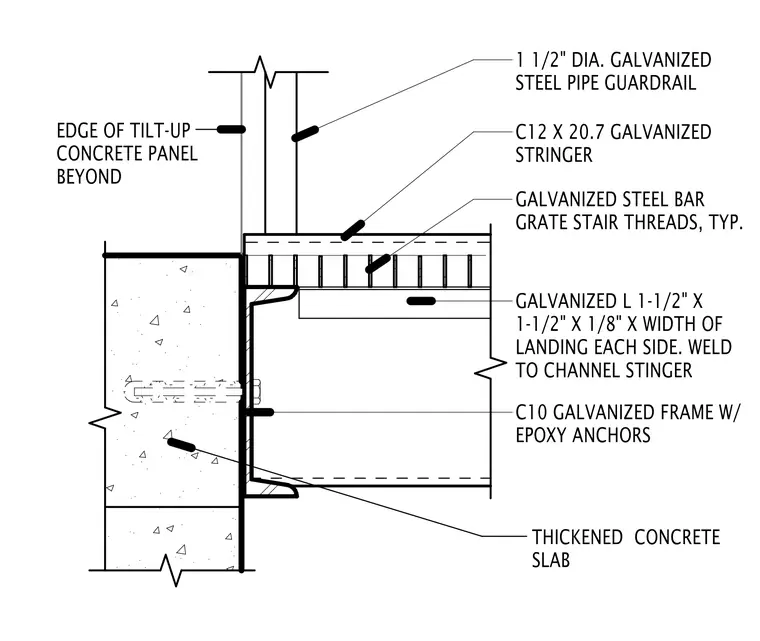

1 1/2" DIA. GALVANIZED STEEL PIPE GUARDRAIL C12 X 20.7 GALVANIZED STRINGER GALVANIZED STEEL BAR GRATE STAIR THREADS, TYP. GALVANIZED L 1-1/2" X 1-1/2" X 1/8" X WIDTH OF LANDING EACH SIDE. WELD TO CHANNEL STINGER C10 GALVANIZED FRAME W/ EPOXY ANCHORS THICKENED CONCRETE SLAB EDGE OF TILT-UP CONCRETE PANEL BEYOND
