Structural · S-CWC2S

Louver Header and Mullion Detail

Materials

Steel Metal (misc.)

Elements

Columns Beams Facades / Cladding Floors / Slabs Arches Anchors / Embeds Connections / Plates

Connections

Gusset Plate Embed Plate

About this detail

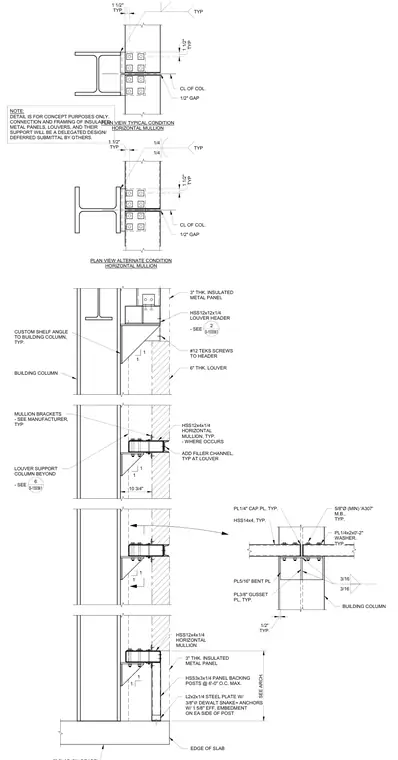

Structural steel details provide louver and insulated metal panel framing at building columns. An HSS12x12x1/4 louver header supports a 3-inch thick insulated metal panel and a 6-inch thick louver, connected via a custom shelf angle secured to the building column. Horizontal mullions utilize HSS12x4x1/4 sections with 3/8-inch thick gusset plates and 5/16-inch bent plates, fastened with 5/8-inch diameter ASTM A307 machine bolts and 1/4-inch cap plates. Panel backing posts use HSS3x3x1/4 members spaced at 6 feet on center maximum, anchored to the edge of the slab with L2x2x1/4 steel plates and 3/8-inch diameter DeWalt Snake+ anchors with 1-5/8 inch effective embedment on each side of the post. A note indicates that the connection and framing are for concept purposes only and represent a delegated design and deferred submittal by others.
