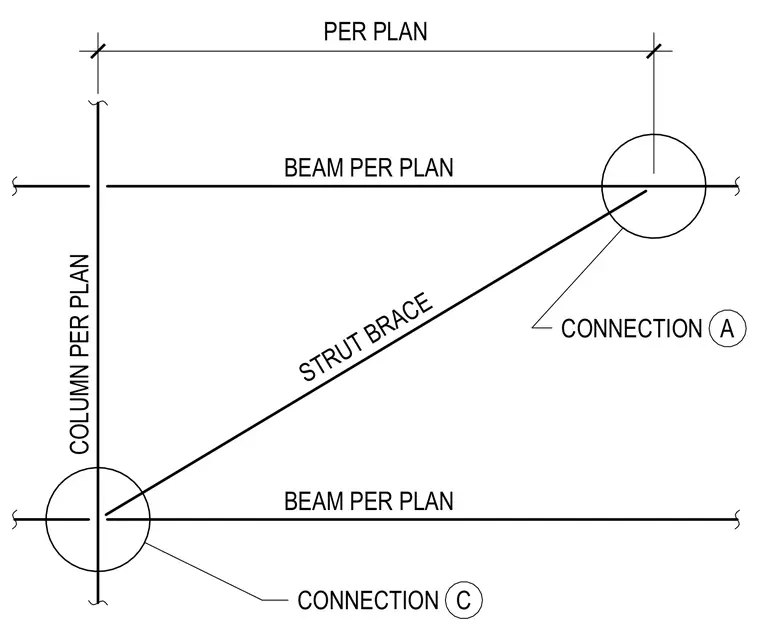

A diagonal strut brace extends between a structural column and a beam, sized per plan. Connection points A and C secure the brace ends to the framing members as indicated. Overall dimensions are sized per plan.
CONNECTION BEAM PER PLAN STRUT BRACE COLUMN PER PLAN BEAM PER PLAN CONNECTION A C PER PLAN
