Structural · S-CW7JS

Typical Timber Post Cap Connection at Existing Roof Framing

Elements

Connections

About this detail

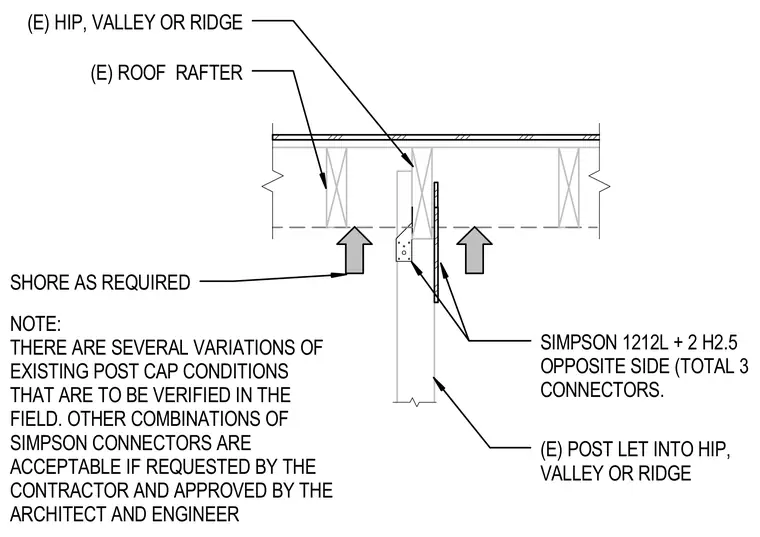

An existing wood post is let into a hip, valley, or ridge beam and secured with a Simpson 1212L connector combined with two H2.5 connectors on the opposite side, totaling three connectors. Temporary shoring must be provided as required during installation. Field verification of existing post cap conditions is necessary due to several variations, and alternative Simpson connector combinations are subject to contractor request and engineer approval.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
