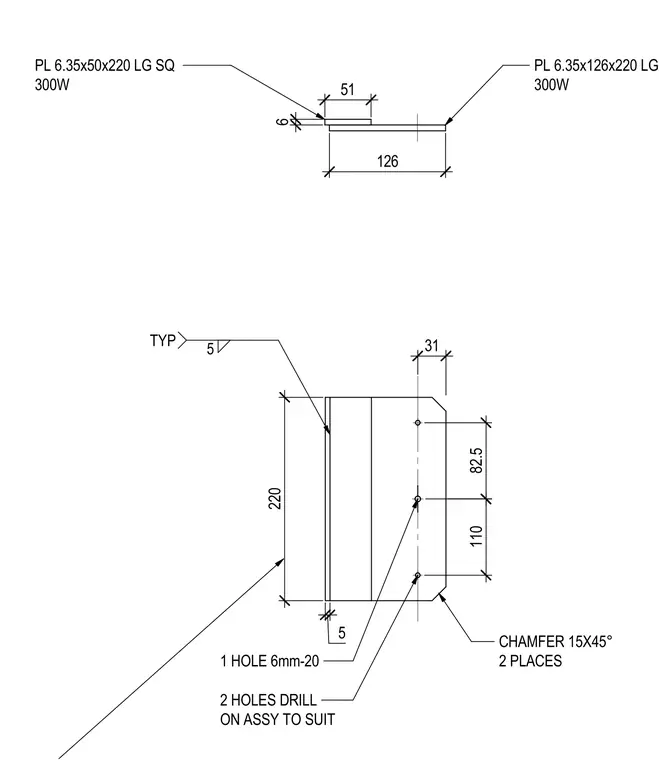

This connection assembly consists of a 6.35 mm thick by 126 mm wide by 220 mm long steel plate welded to a 6.35 mm thick by 50 mm wide by 220 mm long steel plate using a typical 5 mm fillet weld. The wider plate features a 15x45 degree chamfer at two corners and three pre-drilled holes, including one 6 mm diameter hole and two holes to be drilled on assembly to suit. All steel components are specified as CSA G40.21 300W grade material.
6 51 126 PL 6.35x126x220 LG SQ 300W PL 6.35x50x220 LG SQ 300W 31 82.5 110 5 220 2 HOLES DRILL ON ASSY TO SUIT 1 HOLE 6mm-20 CHAMFER 15X45° 2 PLACES 5 TYP
