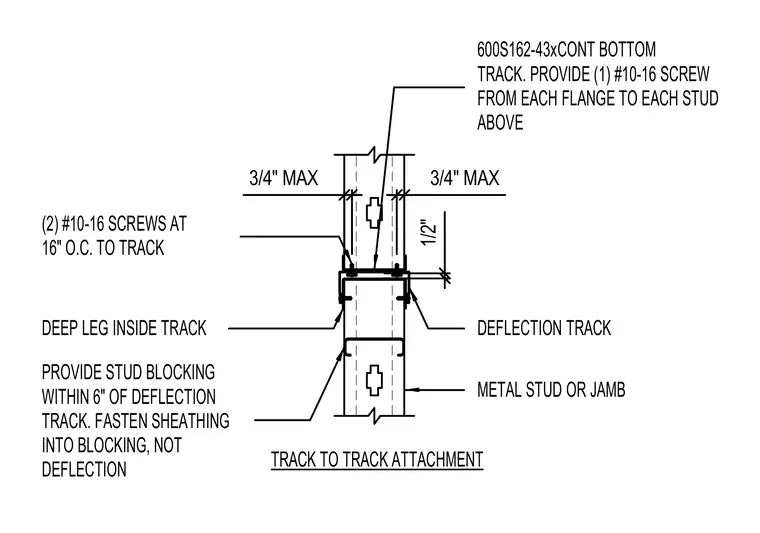

A continuous bottom track of size 600S162-43 sets inside a deep leg deflection track to accommodate vertical movement. A single number 10-16 self-drilling screw fastens each flange of the framing stud above to each side of the deflection track. Two number 10-16 screws secure the track connection at sixteen inches on center. Stud blocking is installed within six inches of the deflection track to allow sheathing attachment without restricting structural movement.
TRACK TO TRACK ATTACHMENT (2) #10-16 SCREWS AT 16" O.C. TO TRACK DEEP LEG INSIDE TRACK DEFLECTION TRACK METAL STUD OR JAMB 600S162-43xCONT BOTTOM TRACK. PROVIDE (1) #10-16 SCREW FROM EACH FLANGE TO EACH STUD ABOVE PROVIDE STUD BLOCKING WITHIN 6" OF DEFLECTION TRACK. FASTEN SHEATHING INTO BLOCKING, NOT DEFLECTION 1/2" 3/4" MAX 3/4" MAX
