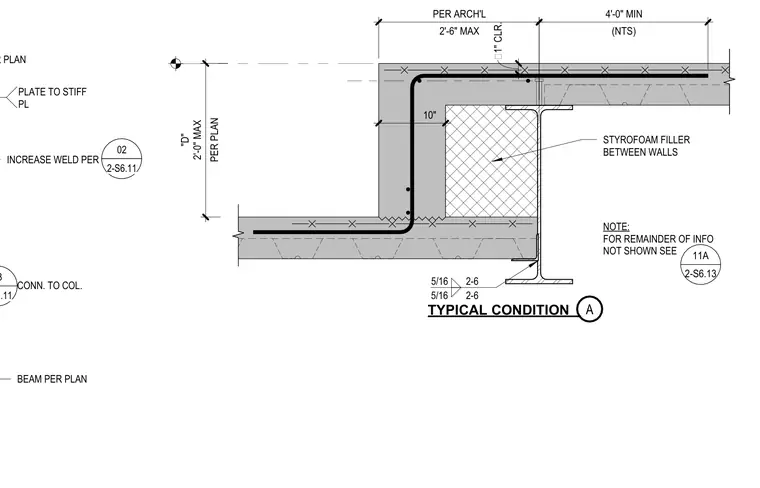

An elevated concrete slab and metal deck steps down across a supporting structural steel beam sized per plan. Styrofoam filler blocks the void between the concrete levels. Five-sixteenths inch fillet welds connect the steel framing components, with increased weld size per connection to the column plate as indicated. Reinforcing steel is detailed with a minimum four-foot extension and a maximum two-foot-six-inch dimension per architectural requirements.
1" CLR. 2'-6" MAX PER ARCH'L (NTS) 4'-0" MIN 5/16 2-6 5/16 2-6 10" PER PLAN "D" 2'-0" MAX NOTE: FOR REMAINDER OF INFO NOT SHOWN SEE 11A 2-S6.13 STYROFOAM FILLER BETWEEN WALLS TYPICAL CONDITION A BEAM PER PLAN COLUMN PER PLAN INCREASE WELD PER CONN. TO COL. PLATE TO STIFF PL 02 2-S6.11 03 2-S6.11
