Structural · S-CVXAP

Folding Wall Support

Materials

Steel

Elements

Beams Walls Roofs Floors / Slabs Decks Anchors / Embeds Connections / Plates

Connections

Welded Connection Deck Attachment

About this detail

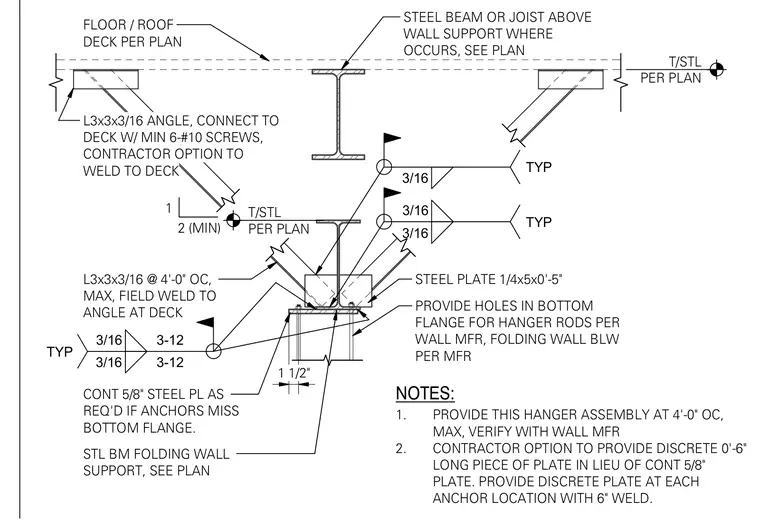

A structural steel folding wall support assembly suspended from an overhead steel beam or joist. The detail features a supporting steel beam with a continuous or discrete five-eighths-inch steel plate and a bottom flange drilled for hanger rods per the wall manufacturer. An L3x3x3/16 angle connects to the floor or roof deck with a minimum of six number 10 screws, with a contractor option to field weld to the deck at four feet on center maximum. Additional L3x3x3/16 angles spaced at four feet on center maximum are field welded to the deck angle and connected to a one-quarter-inch by five-inch by five-inch steel plate with three-sixteenths-inch fillet welds. A continuous or discrete six-inch-long steel plate is provided as required if anchors miss the bottom flange.
