A wood nailer connects to a roof truss purlin. A three-inch top plate is fastened using number fourteen by two-inch wood screws spaced at twelve inches on center, staggered at each angle. Sub-purlins are spaced at twenty-four inches on center across the assembly. Two rows are specified at continuous edge spacing, requiring four lines where staggered and six lines where three lines of nailing are required.

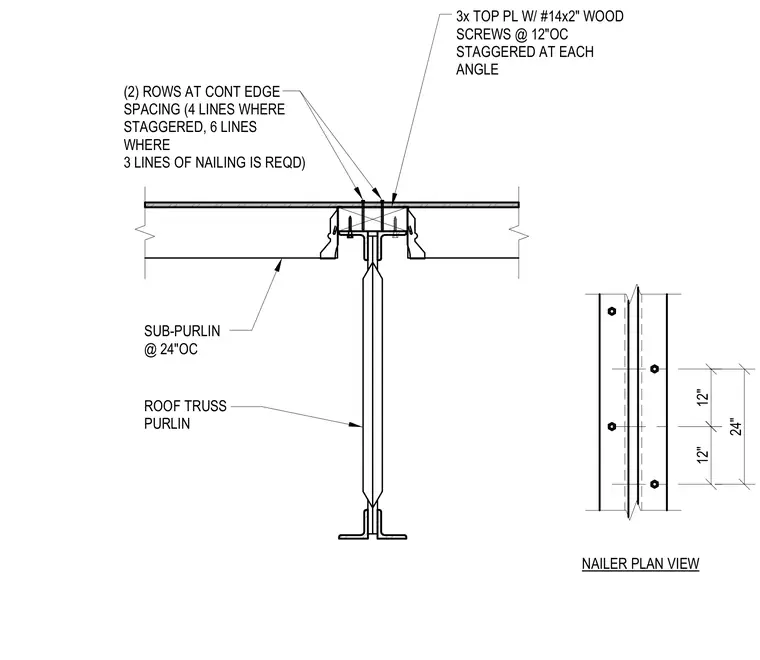

12" 12" 24" NAILER PLAN VIEW 3x TOP PL W/ #14x2" WOOD SCREWS @ 12"OC STAGGERED AT EACH ANGLE SUB-PURLIN @ 24"OC ROOF TRUSS PURLIN (2) ROWS AT CONT EDGE SPACING (4 LINES WHERE STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD)
