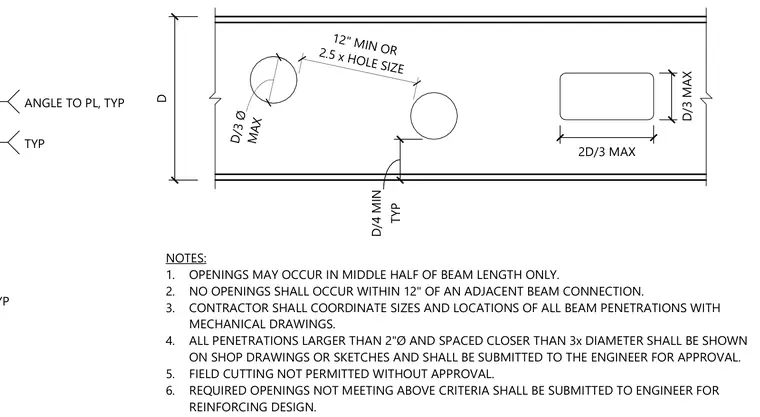

Beam web penetrations are restricted to the middle half of the beam length and must maintain a minimum distance of twelve inches from any adjacent beam connection. Circular openings are limited to a maximum diameter of one-third the beam depth, with rectangular openings limited to two-thirds the beam depth in height. Clear spacing between adjacent holes requires a minimum of twelve inches or two-and-a-half times the hole size. Field cutting is prohibited without prior approval, and all penetrations larger than two inches in diameter and spaced closer than three times the diameter must be submitted to the engineer for review.
ANGLE TO PL, TYP TYP PL 1/4x6x6, TYP 12" MIN OR 2.5 x HOLE SIZE D/3 MAX 2D/3 MAX NOTES: 1. OPENINGS MAY OCCUR IN MIDDLE HALF OF BEAM LENGTH ONLY. 2. NO OPENINGS SHALL OCCUR WITHIN 12" OF AN ADJACENT BEAM CONNECTION. 3. CONTRACTOR SHALL COORDINATE SIZES AND LOCATIONS OF ALL BEAM PENETRATIONS WITH MECHANICAL DRAWINGS. 4. ALL PENETRATIONS LARGER THAN 2"Ø AND SPACED CLOSER THAN 3x DIAMETER SHALL BE SHOWN ON SHOP DRAWINGS OR SKETCHES AND SHALL BE SUBMITTED TO THE ENGINEER FOR APPROVAL. 5. FIELD CUTTING NOT PERMITTED WITHOUT APPROVAL. 6. REQUIRED OPENINGS NOT MEETING ABOVE CRITERIA SHALL BE SUBMITTED TO ENGINEER FOR REINFORCING DESIGN. MAX D/3 Ø D TYP D/4 MIN
