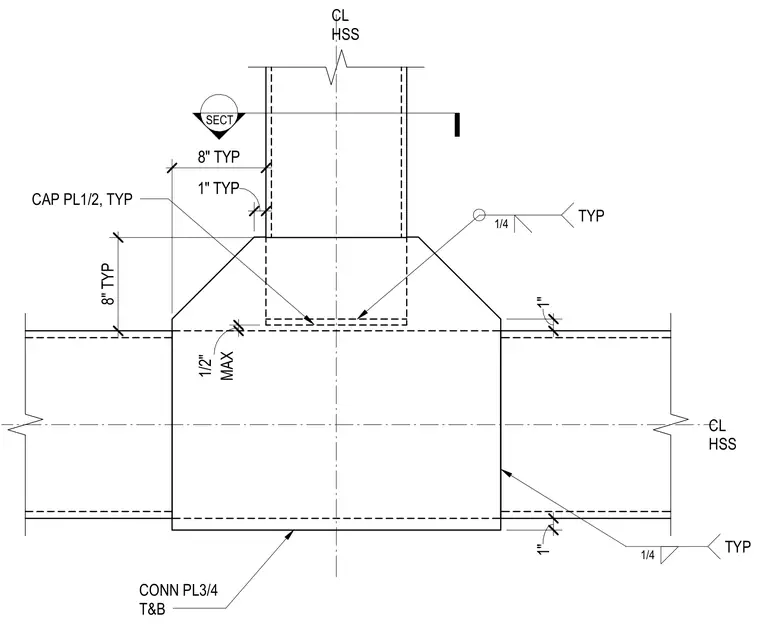

A vertical hollow structural section member connects to a horizontal hollow structural section member using three-quarter inch connection plates at the top and bottom. A one-half inch cap plate is welded typical with quarter-inch fillet welds. Dimensions indicate typical clearances of one inch and eight inches with a maximum half-inch gap.
SECT CL HSS CL HSS 1" 1" 1" TYP 8" TYP MAX 1/2" CONN PL3/4 T&B TYP 1/4 CAP PL1/2, TYP TYP 1/4 8" TYP
