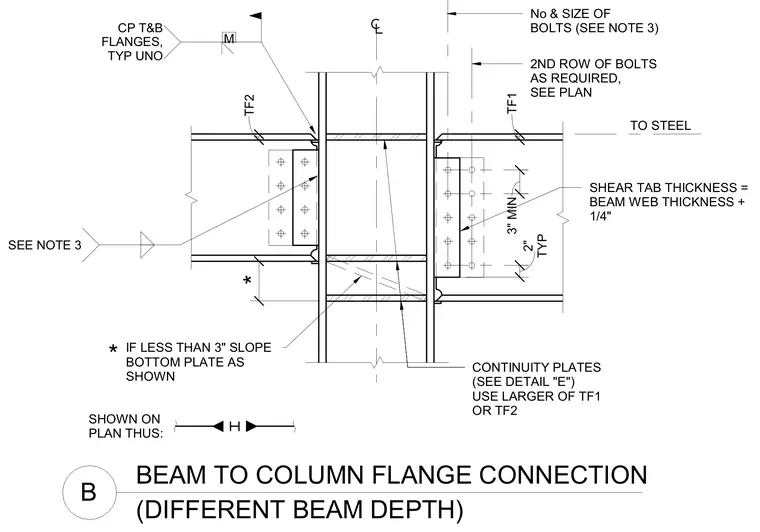

Steel beams of differing depths frame into opposite flanges of a central column using bolted single plate shear connections and welded flange plates. The shear tab thickness equals the beam web thickness plus one-quarter inch, with bolt sizing and counts detailed on plan. Continuity plates match the larger of the two connecting beam flange thicknesses (TF1 or TF2) and weld to the column top and bottom flanges. A sloped bottom plate accommodates depth transitions when the elevation difference is less than three inches, and secondary rows of bolts are provided as required by plan.
BEAM TO COLUMN FLANGE CONNECTION (DIFFERENT BEAM DEPTH) B TO STEEL No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED, SEE PLAN IF LESS THAN 3" SLOPE BOTTOM PLATE AS SHOWN CONTINUITY PLATES (SEE DETAIL "E") USE LARGER OF TF1 OR TF2 SHEAR TAB THICKNESS = BEAM WEB THICKNESS + 1/4" * SHOWN ON PLAN THUS: * 3" MIN TYP 2" TF2 TF1 CP T&B FLANGES, TYP UNO M SEE NOTE 3
