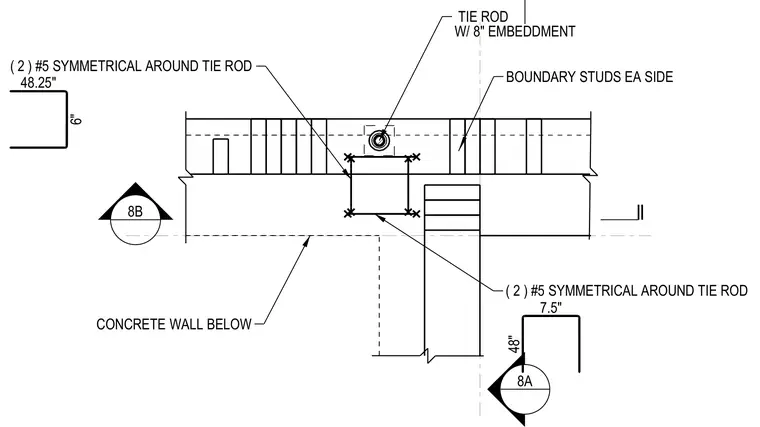

A tie rod with eight inches of embedment anchors into a concrete wall above an opening, flanked by boundary studs on each side. Two number five reinforcing bars are placed symmetrically around the tie rod at measured intervals of forty-eight and one-quarter inches and forty-eight inches. Dimensions define the spacing of the reinforcement and embedment layout relative to the concrete wall below.
CONCRETE WALL BELOW 8A BOUNDARY STUDS EA SIDE TIE ROD W/ 8" EMBEDDMENT ( 2 ) #5 SYMMETRICAL AROUND TIE ROD 48.25" 6" ( 2 ) #5 SYMMETRICAL AROUND TIE ROD 48" 7.5" 8B
