Structural · S-CV9AQ

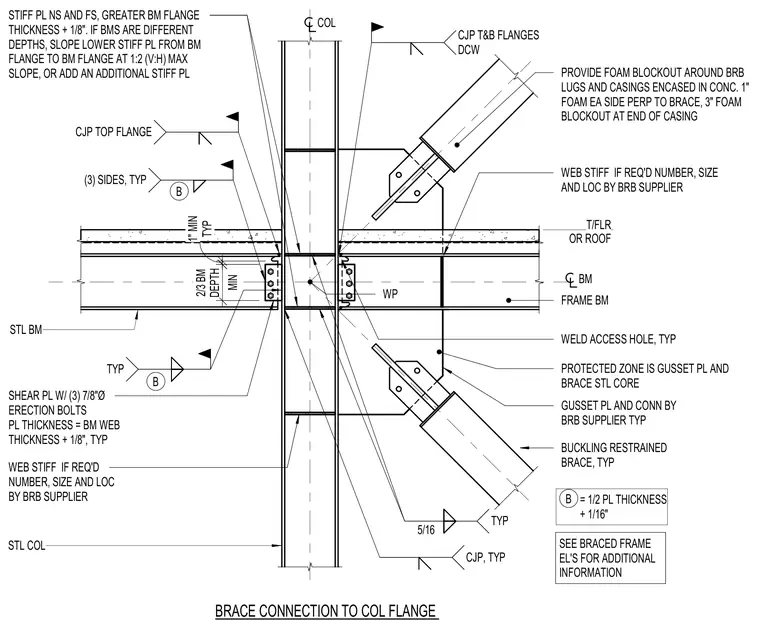

Brace Connection to Col Flange

Materials

Concrete Glass / Glazing

Elements

Roofs Bracing Millwork / Casework Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

A buckling restrained braced frame connection at a steel column flange incorporates steel floor beams and gusset plates. The connection features stiffener plates near siding members, complete joint penetration welds at the top and bottom flanges, and shear plates secured with three seven-eighths inch diameter erection bolts. Foam blockouts are provided around the buckling restrained brace lugs and casings encased in concrete, with specific clearances for perpendicular faces and casing ends. Additional web stiffeners are sized and located by the buckling restrained brace supplier as required.
