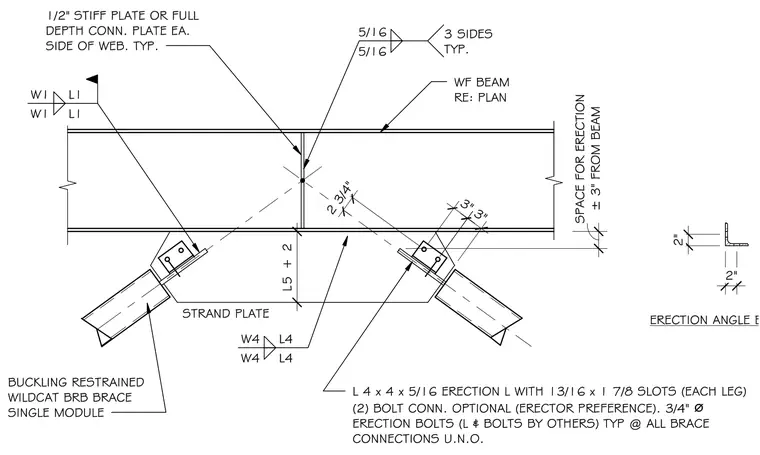

This structural steel connection details a buckling restrained Wildcat BRB brace framing into a wide flange beam. A strand plate connects the brace to half-inch stiffener plates or full-depth connection plates welded to each side of the beam web with five-sixteenths fillet welds on three sides. An optional four-by-four by five-sixteenths erection angle with slotted holes and three-quarter-inch diameter erection bolts provides temporary support during erection.
W1 L1 W1 L1 2" 2" ERECTION ANGLE BY OTHERS WF BEAM RE: PLAN 3" W4 L4 W4 L4 5/16 5/16 3 SIDES TYP. 1/2" STIFF PLATE OR FULL DEPTH CONN. PLATE EA. SIDE OF WEB. TYP. STRAND PLATE BUCKLING RESTRAINED WILDCAT BRB BRACE SINGLE MODULE SPACE FOR ERECTION ± 3" FROM BEAM L 4 x 4 x 5/16 ERECTION L WITH 13/16 x 1 7/8 SLOTS (EACH LEG) (2) BOLT CONN. OPTIONAL (ERECTOR PREFERENCE). 3/4" ⌀ ERECTION BOLTS (L & BOLTS BY OTHERS) TYP @ ALL BRACE CONNECTIONS U.N.O. 3" 2 3/4" L5 + 2
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
