Structural · S-CV55N

Steel Beam and Concrete Slab Connection with Kicker Brace

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Windows Ceilings Floors / Slabs Decks Arches Bracing Connections / Plates

Connections

Beam-to-Beam Bracing Connection Welded Connection Deck Attachment

About this detail

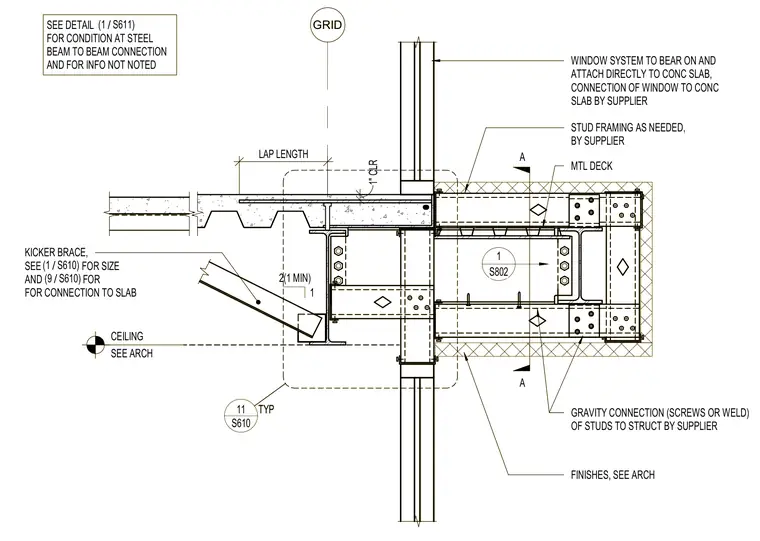

A structural steel beam-to-beam and slab connection features a kicker brace for lateral support. The window system bears directly on and attaches to the concrete slab, with connection details provided by the supplier. A metal deck supports the concrete slab overhead, with stud framing added as needed by the supplier using gravity connections via screws or welds. A kicker brace ties back to the structural framing, sized and connected per structural drawings. Additional beam connection conditions are referenced to separate details.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
