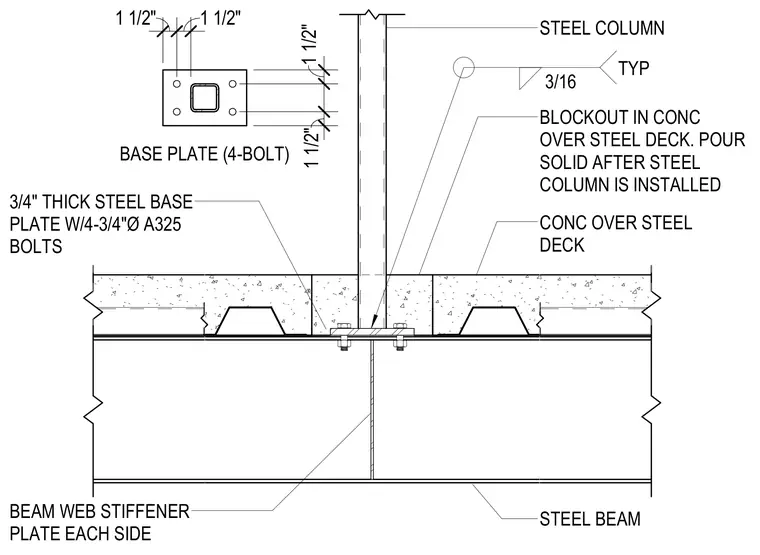

A steel column connects to a three-quarters-inch thick steel base plate secured with four three-quarters-inch diameter ASTM A325 bolts. The base plate bears on a concrete topping over a steel deck, supported by a steel beam equipped with beam web stiffener plates on each side. A blockout in the concrete over the steel deck allows for column installation before being poured solid. A typical three-sixteenths-inch fillet weld connects the column to the base plate.
3/4" THICK STEEL BASE PLATE W/4-3/4"Ø A325 BOLTS STEEL COLUMN CONC OVER STEEL DECK STEEL BEAM BEAM WEB STIFFENER PLATE EACH SIDE BLOCKOUT IN CONC OVER STEEL DECK. POUR SOLID AFTER STEEL COLUMN IS INSTALLED BASE PLATE (4-BOLT) 1 1/2" 1 1/2" 1 1/2" 1 1/2" 3/16 TYP
