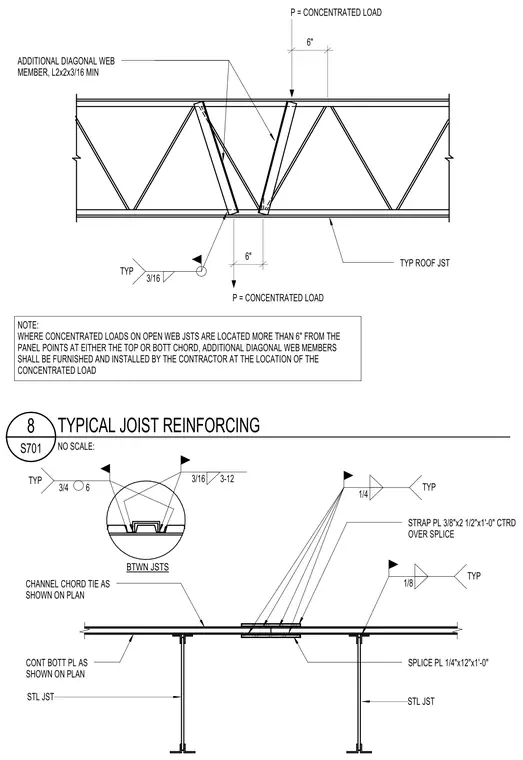

Open web steel joists are reinforced at concentrated load locations exceeding six inches from panel points by adding L2x2x3/16 minimum diagonal web members welded typically with three-sixteenths inch welds. Adjacent steel joists are connected using a channel chord tie and continuous bottom plates as detailed on plan. Splice connections between joists utilize a one-quarter by twelve inch by one foot zero inch bottom splice plate centered over the joint with a three-eighths by two and one-half inch by one foot zero inch strap plate at the top cord.
6" 6" P = CONCENTRATED LOAD ADDITIONAL DIAGONAL WEB MEMBER, L2x2x3/16 MIN TYP ROOF JST P = CONCENTRATED LOAD NOTE: WHERE CONCENTRATED LOADS ON OPEN WEB JSTS ARE LOCATED MORE THAN 6" FROM THE PANEL POINTS AT EITHER THE TOP OR BOTT CHORD, ADDITIONAL DIAGONAL WEB MEMBERS SHALL BE FURNISHED AND INSTALLED BY THE CONTRACTOR AT THE LOCATION OF THE CONCENTRATED LOAD TYP 3/16 CONT BOTT PL AS SHOWN ON PLAN CHANNEL CHORD TIE AS SHOWN ON PLAN SPLICE PL 1/4"x12"x1'-0" STRAP PL 3/8"x2 1/2"x1'-0" CTRD OVER SPLICE BTWN JSTS TYP 3/4 6 3/16 3-12 TYP 1/4 TYP 1/8 STL JST STL JST NO SCALE: S701 8 TYPICAL JOIST REINFORCING
