Masonry Veneer Shelf Angle Support Details

Materials

Elements

Columns Beams Facades / Cladding Floors / Slabs Arches Anchors / Embeds Connections / Plates

About this detail

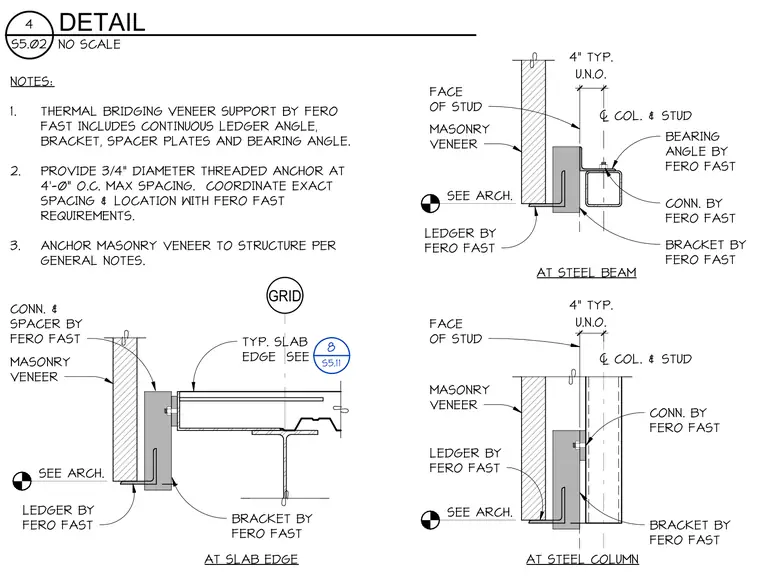

Attachment of a proprietary Fero Fast thermal bridging veneer support system to structural steel framing. The assembly incorporates a continuous masonry veneer ledger, bearing angle, brackets, and spacer plates anchored back to the primary structure. Three conditions are detailed: at a steel beam, at a slab edge, and at a steel column. Connection is secured using three-quarter inch diameter threaded anchors spaced at four feet on center maximum. Masonry veneer details and backup wall construction are coordinated with architectural requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
