Slab on Metal Deck Connection at Concrete Wall

Materials

Concrete Steel

Elements

Columns Walls Floors / Slabs Decks Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Deck Attachment Embed Plate

About this detail

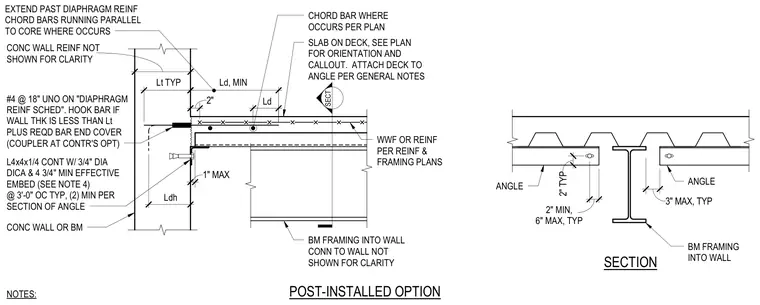

A continuous L4x4x1/4 angle fastened with three-quarter-inch diameter post-installed anchors at three feet on center typical, with a minimum of two anchors per section of angle, connects a slab on metal deck to a concrete wall or beam. A chord bar runs parallel to the core where required, and diaphragm reinforcement consists of number four bars at eighteen inches on center unless noted otherwise. A hook bar is specified if the wall thickness is less than the development length plus the required bar end cover, with a coupler permitted at the contractor's option. Welded wire fabric or reinforcement is provided per the framing plans, and the metal deck is attached to the support angle according to general notes.
