A reinforced concrete slab rests over subgrade material with a specified two-inch clear cover to reinforcement. Joints are detailed with half-depth spacings and minimum two-and-a-quarter-inch dimensions. Dowel bars and joint sealers are integrated into the slab edges at designated locations. Subgrade preparation includes compacted aggregate layers beneath the slab.

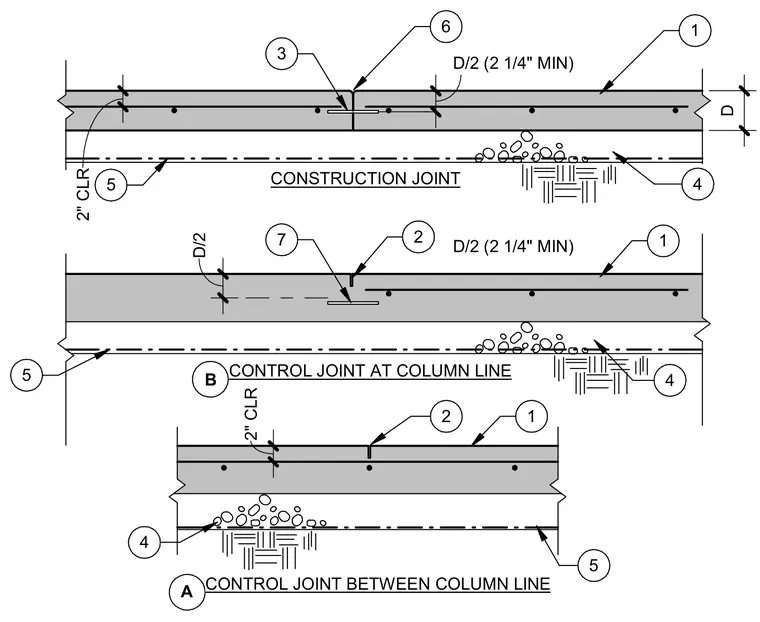

2 2" CLR 4 CONTROL JOINT BETWEEN COLUMN LINE 5 CONSTRUCTION JOINT 3 1 4 5 D D/2 (2 1/4" MIN) 2" CLR CONTROL JOINT AT COLUMN LINE 7 2 4 5 D/2 (2 1/4" MIN) A B 1 1 6 D/2
