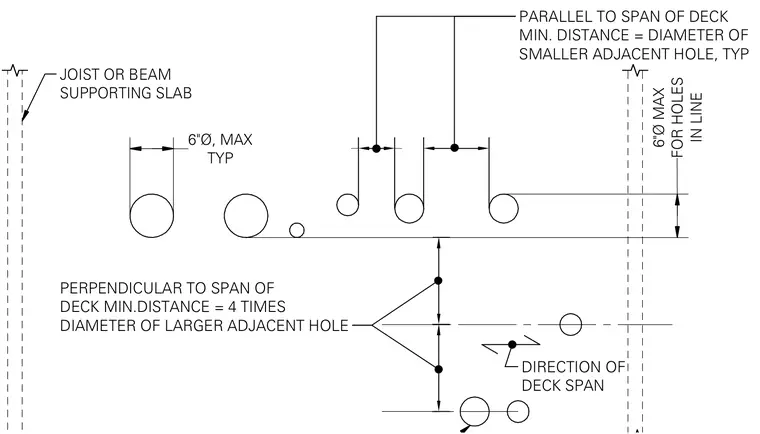

Concrete slab core holes are limited to a maximum six-inch diameter for holes in line. Holes parallel to the span of the metal deck require a minimum distance equal to the diameter of the smaller adjacent hole. Holes perpendicular to the span of the deck require a minimum distance of four times the diameter of the larger adjacent hole. These spacing rules apply to slabs supported by steel joists or beams.
JOIST OR BEAM SUPPORTING SLAB TYP 6"Ø, MAX IN LINE 6"Ø MAX FOR HOLES PARALLEL TO SPAN OF DECK MIN. DISTANCE = DIAMETER OF SMALLER ADJACENT HOLE, TYP PERPENDICULAR TO SPAN OF DECK MIN.DISTANCE = 4 TIMES DIAMETER OF LARGER ADJACENT HOLE DIRECTION OF DECK SPAN
