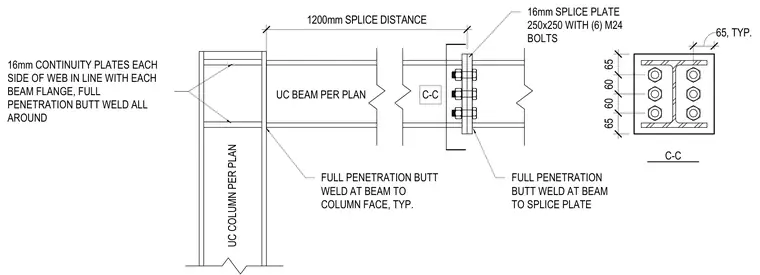

A universal column connects to a universal beam per plan, secured with a full penetration butt weld at the column face. Sixteen-millimeter continuity plates are welded to each side of the web in line with each beam flange using full penetration butt welds all around. A sixteen-millimeter splice plate measuring 250 by 250 millimeters connects the beam segments using six M24 bolts. A full penetration butt weld secures the beam to the splice plate at a 1200-millimeter splice distance.
1200mm SPLICE DISTANCE UC BEAM PER PLAN UC COLUMN PER PLAN 16mm CONTINUITY PLATES EACH SIDE OF WEB IN LINE WITH EACH BEAM FLANGE, FULL PENETRATION BUTT WELD ALL AROUND FULL PENETRATION BUTT WELD AT BEAM TO COLUMN FACE, TYP. 16mm SPLICE PLATE 250x250 WITH (6) M24 BOLTS C-C C-C 65 60 60 65 65, TYP. FULL PENETRATION BUTT WELD AT BEAM TO SPLICE PLATE
