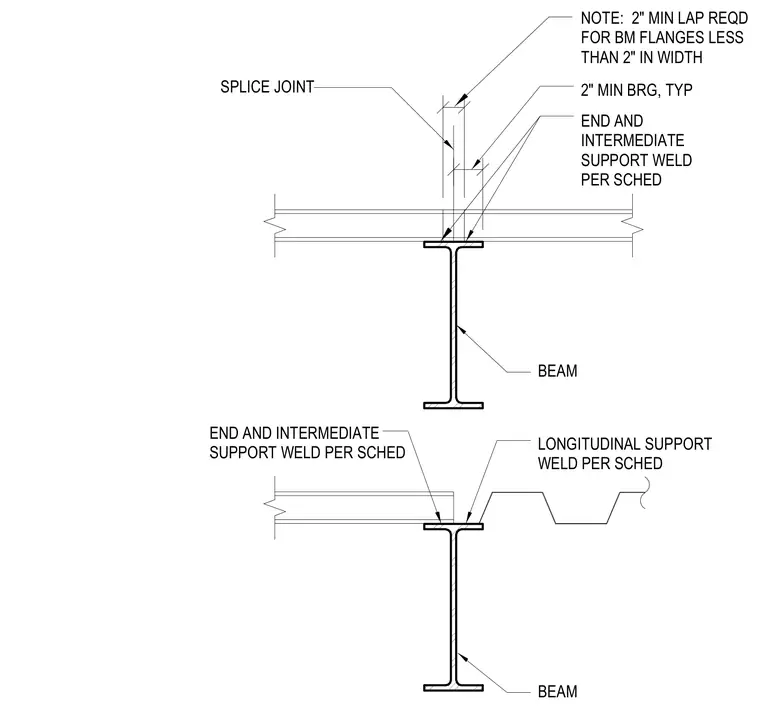

A metal deck splice joint bears on a structural steel beam. The metal deck panels require a two-inch minimum bearing length typically, with end and intermediate support welds installed per schedule. Longitudinal support welds secure the deck edges along the beam flange. A note specifies a two-inch minimum lap requirement for beam flanges less than two inches in width.
NOTE: 2" MIN LAP REQD FOR BM FLANGES LESS THAN 2" IN WIDTH LONGITUDINAL SUPPORT WELD PER SCHED BEAM SPLICE JOINT BEAM 2" MIN BRG, TYP END AND INTERMEDIATE SUPPORT WELD PER SCHED END AND INTERMEDIATE SUPPORT WELD PER SCHED
