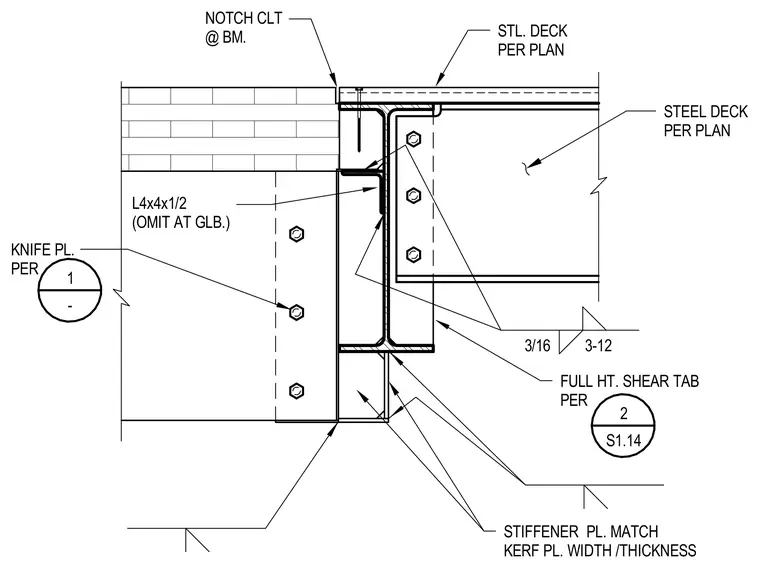

A structural steel beam frames into a cross-laminated timber panel using a knife plate connection, with steel decking bearing on top of the beam flange. A full-height shear tab matches the stiffener plate width and thickness, welded with three-sixteenths inch welds. An L4x4x1/2 angle is provided but omitted at glued-laminated timber. The cross-laminated timber panel is notched at the beam, and knife plates are detailed per structural drawing one. Steel deck is installed per plan specifications.
1 - 2 S1.14 NOTCH CLT @ BM. KNIFE PL. PER STL. DECK PER PLAN 3/16 3-12 STEEL DECK PER PLAN FULL HT. SHEAR TAB PER STIFFENER PL. MATCH KERF PL. WIDTH /THICKNESS L4x4x1/2 (OMIT AT GLB.)
