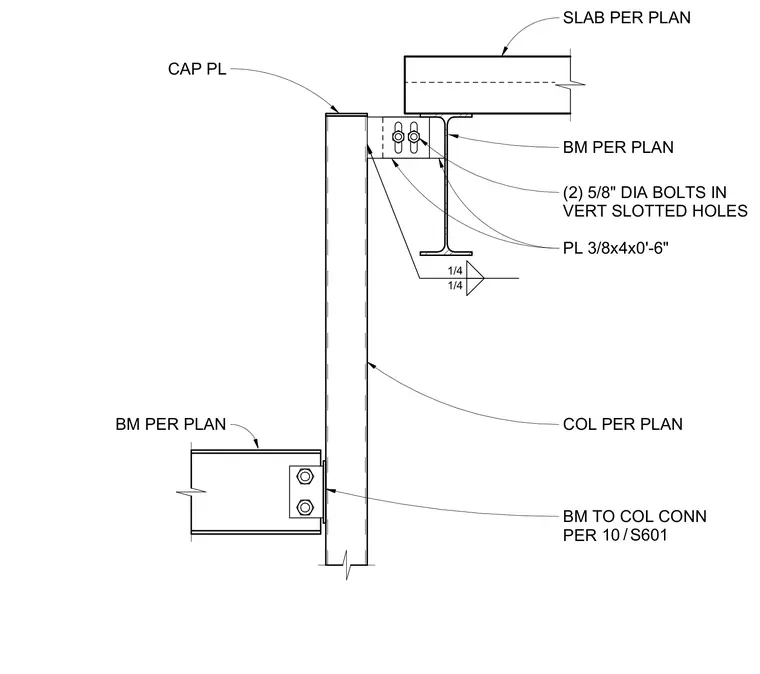

A structural steel canopy column connects to a beam sized per plan using a three-eighths by four-inch by zero-foot-six-inch plate secured by two five-eighths-inch diameter bolts in vertical slotted holes. The connection includes a cap plate welded to the top of the column with quarter-inch fillet welds. A separate beam-to-column connection located lower on the shaft is detailed per sheet S601.
SLAB PER PLAN PL 3/8x4x0'-6" (2) 5/8" DIA BOLTS IN VERT SLOTTED HOLES 1/4 1/4 COL PER PLAN BM TO COL CONN PER / 10 S601 BM PER PLAN CAP PL BM PER PLAN
